Application:

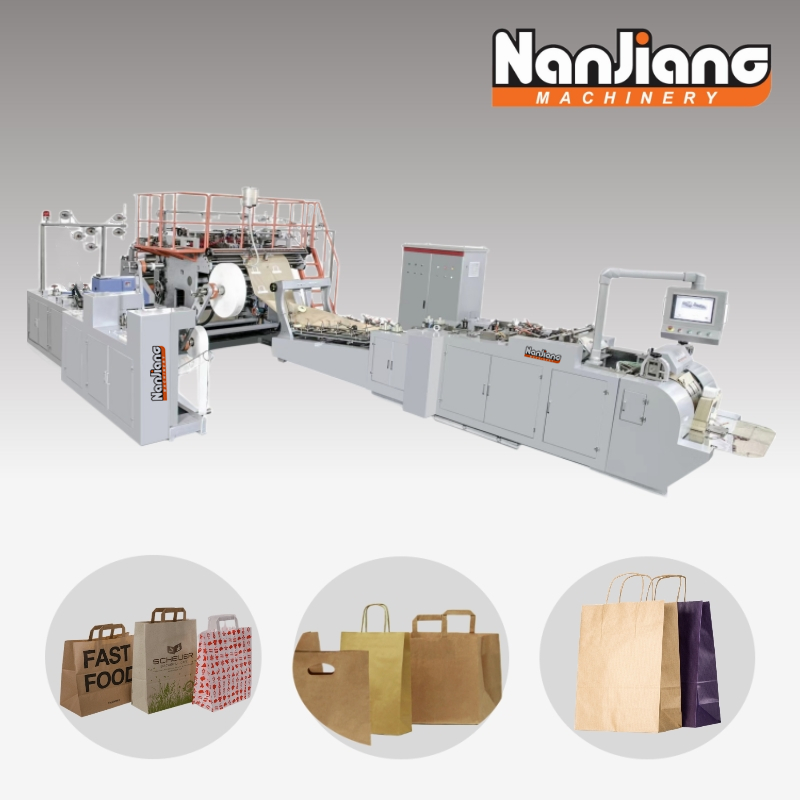

WFD-430 Fully Automatic Roll Fed Paper Bags With Twisted & Flat Handle Machine is a perfect solution for your various paper packaging needs. The equipment can efficiently produce twisted and flat handle paper bags, shopping bags, food bags, suitable for various paper packaging industries.
Advantages:
Fully Automated Operation: The WFD-430 operates with complete automation, minimizing the need for manual intervention. This feature increases production efficiency and reduces labor costs significantly.
Adjustable Bag Size: The machine allows for easy and quick adjustments to accommodate various bag sizes, making it highly adaptable to different product dimensions.
User-Friendly Interface: The WFD-430 is equipped with an intuitive interface that simplifies operation and reduces the learning curve for operators.
Sturdy Construction: Built with robust materials and components, the machine ensures durability and reliability even under heavy production loads, resulting in a longer lifespan.
Man Power Required:
1-2 Skilled Operator and 1-2 helpers packing bags.
Technical Parameters：
Machine Model | WFD-430 T&F |
Paper Roll Width | 630-1250mm |
Paper Bag Width | 220-450 mm |
(if without handle) | (160-450 mm) |
Paper Tube Length | 270-520mm |
(if without handle) | (270-600 mm) |
Bag Bottom Width | 80-200 mm |
Paper Thickness | 80-150gsm |
(if without handle) | (70-150 gsm) |
Max. Roll material diameter | ￠1200 mm |
Material Core Diameter | ￠76mm(3″) |
Length of twisted rope (customizable) | 155-175 mm |
(Diameter of Twisted Rope) | 4-6 mm |
Size of Flat Belt | 10-15 mm |
Handle Patch Length | 190 mm |
Handle Patch Width | 40-50 mm |
Handle patch Roll Diameter | ￠1000 mm |
Paper Patch Roll Width | 80-100 mm |
Paper GSM for Handle patch | 110-250 gsm |
Speed | 70-130 Bags/min. |
Total Power | 40KW |
Machine Weight | 19000KG |
Machine Dimension (L*W*H) | 16000 x 8000 x 3000 mm |
Type of glue | Cold & Hot melt Glue |
