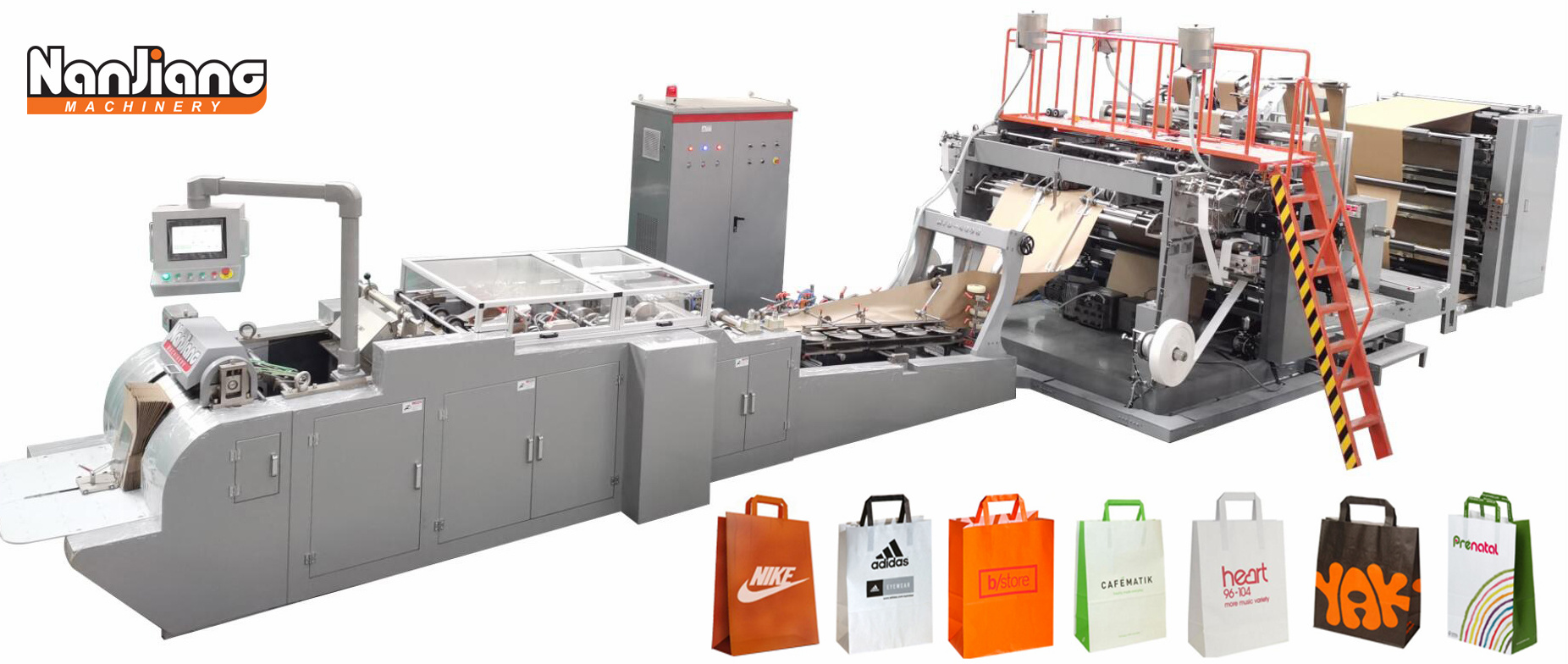

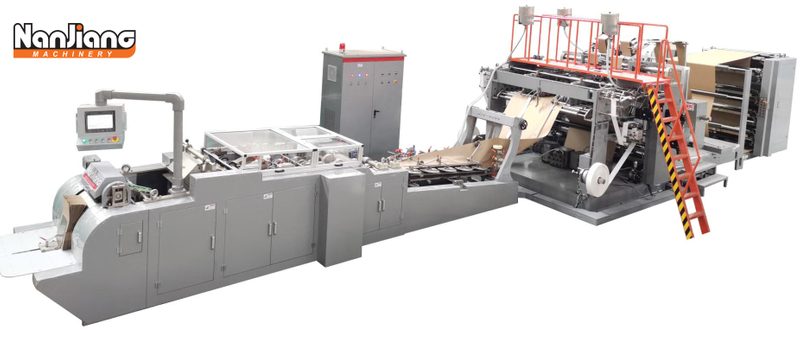

It is the most advanced machine for the production of shopping bags with inside/outside flat handles. The material can be paper roll or printed paper roll. Whole machine is controlled by computer central control system with touch screen and servo motor for cut-off length control.
It can produce a variety of small, medium and large handled bags in one process and effectively save labor costs. Distinct flat-handle making process and special bag counting function greatly improve packing efficiency of finished paper bags.
Main Technical Parameter
Machine Model | WFD-430B |
Paper Roll Width | 630-1250mm |
Paper Bag Width | 220-450 mm |
Paper Tube Length | 280-600mm |
Bag Bottom Width | 80-200mm |
Paper Thickness | 80-150gsm |
Max. Roll material diameter | ¢1200 mm |
Material Core Diameter | ¢76mm(3″) |
Size of Flat Belt | 15mm |
Flat Handle Rope Height | 80mm |
Handle Patch Width | 55mm |
Handle Width | 78mm |
Paper GSM for Handle patch | 70-100gsm |
Handle Patch Length | 170 mm |
Handle Patch Width | 55mm |
Handle patch Roll Diameter | ¢800 mm |
Paper Patch Roll Width | 70-100 mm |
Max. Production Speed | 135Bags/min. |
Total Power | 20KW |
Machine Weight | 22000KG |
Machine Dimension (L*W*H) | 16000 x 3000 x 2600 mm |
