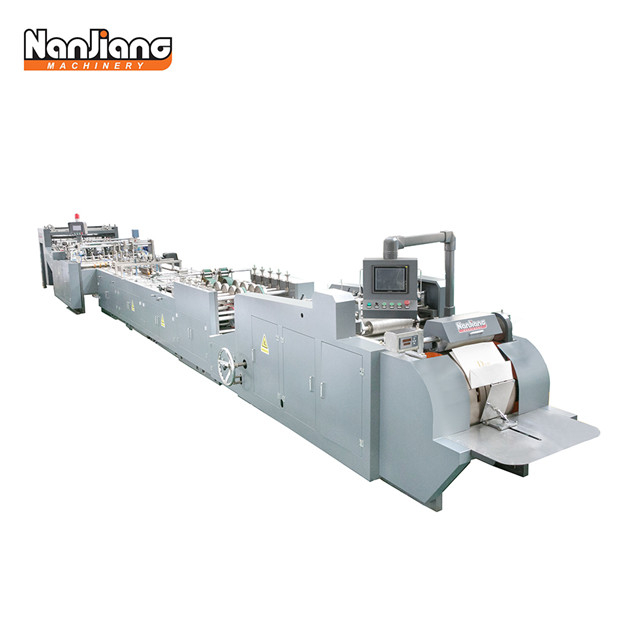

HD-430A Sheet Fed Paper Carry Bag Making Machine with top folding & bottom cardboard

Having absorbed the new technology of domestic and abroad, we successfully developed a new kind of paper carry bag making machine. The materials should be printed sheet paper or non printed sheet paper as per end-user's preference. This machine features a continuous function of automatic paper feeding, top-folding, gluing, creasing, bottom cardboard insertion, bottom pasting and final carry bag output. It is an ideal equipment for luxury high quality paper bags without any manual process.

HD-430A


                       1.jpg  1.jpg2.jpg


Having absorbed the new technology of domestic and abroad, we successfully developed a new kind of paper carry bag making machine. The materials should be printed sheet paper or non printed sheet paper as per end-user's preference. This machine features a continuous function of automatic paper feeding,die-cutting(for 100-200gsm paper), gluing, creasing, bottom pasting and bag formation at a stroke. It is an ideal equipment for small paper bags packing food grocery, Gift,etc without any manual process.


Technical parameter:


Machine Model

HD-430A

Min. Paper size

545x300mm

Max. Paper size

1185x600mm

Paper Thickness

100-200gsm

(210-300gsm Die-cutted Paper)

Paper Bag Width

180-430mm

Bag Tube Length

300-600 mm

Bag Bottom Width

80-170mm

Speed

40-60Bags/min.

Total Power

15kw

Machine Weight

10000KG

Machine Dimension

(L*W*H)

15000 x 2000 x 2000mm
