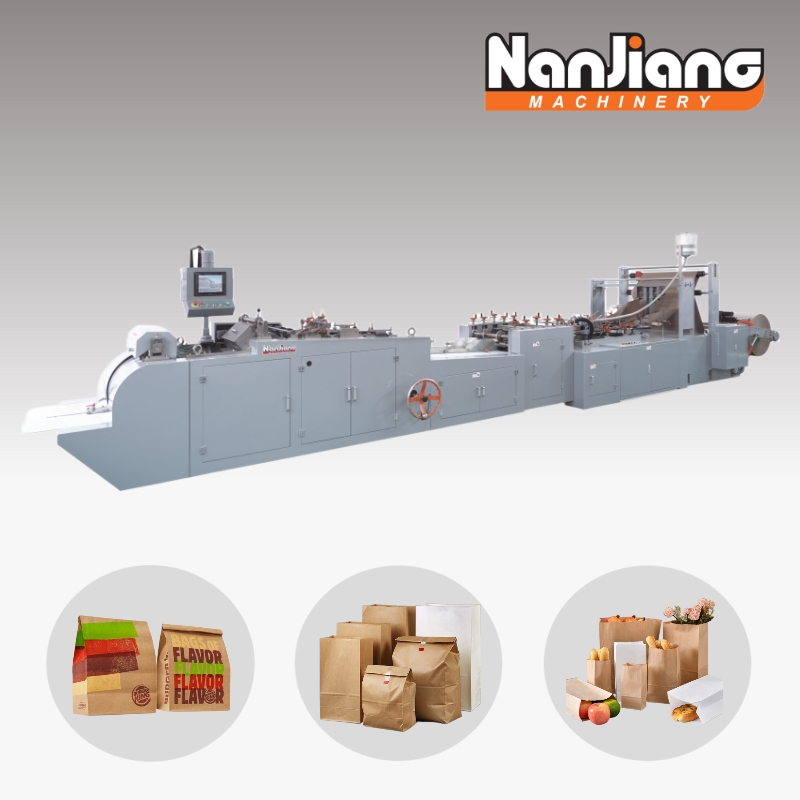

HD-330 Roll Fed Square Bottom Paper Bag Making Machine

This machine is built to make shopping bags or food bags with paper rolls, paper can be pre-printed. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for shopping, loading foods, sugar, flour and so on.
With our machines, you can make paper shopping bags effortlessly, not only practical and professional, but also guaranteed after sale, ensuring a seamless and stylish shopping experience for your customers.
Paper Bags to be used for packing items / Paper shopping bags used for carrying the goods after paste handles.
Paper Bags to be used for packing items / Paper shopping bags used for carrying the goods after paste handles.
Availability:

Technical parameter:




Machine Model

HD-330

Paper Roll Width

350-970mm

Paper thickness

60-150 gsm

Paper Bag Width

100-330 mm

Paper Tube Length

270-600 mm

Bag Bottom Width

60-150 mm

Speed

70-150 Bags/min.

Max. Roll material diameter

¢1200 mm

Material Core Diameter

¢76mm(3″)

Total Power

16KW

Machine Weight

9000KG

Machine Dimension (L*W*H)

12500x2100x2000mm



Video:
