HD-330/430-1/550 Roll Fed Square Bottom Paper Bag Machine

Share to:

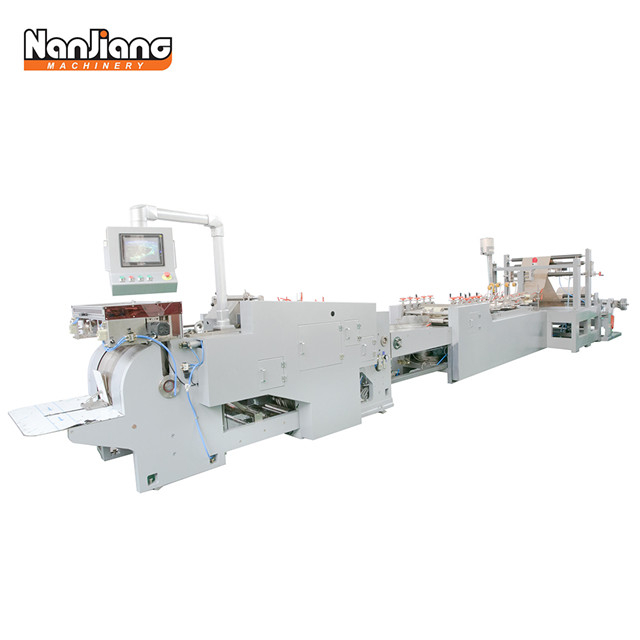

HD-330/430-1/550 Roll Fed Square Bottom Paper Bag Machine

This machine is built to make shopping bags or food bags with paper rolls, paper can be pre-printed. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for shopping, loading foods, sugar, flour and so on.

Availability:

Product description

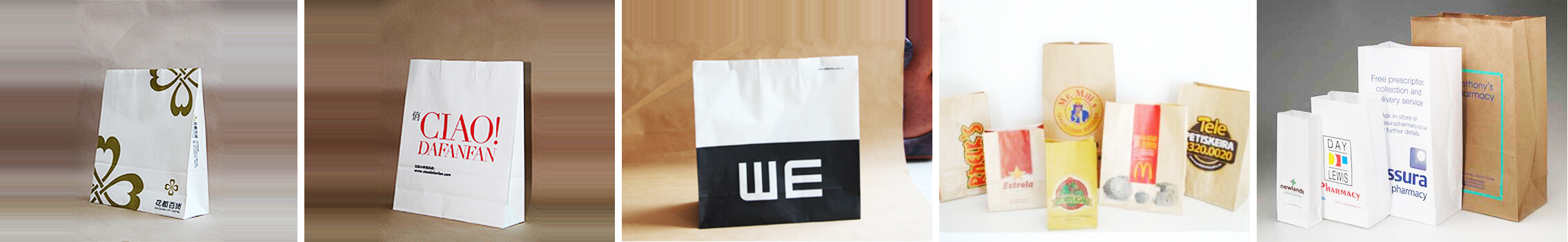

HD-330HD-430-1HD-550

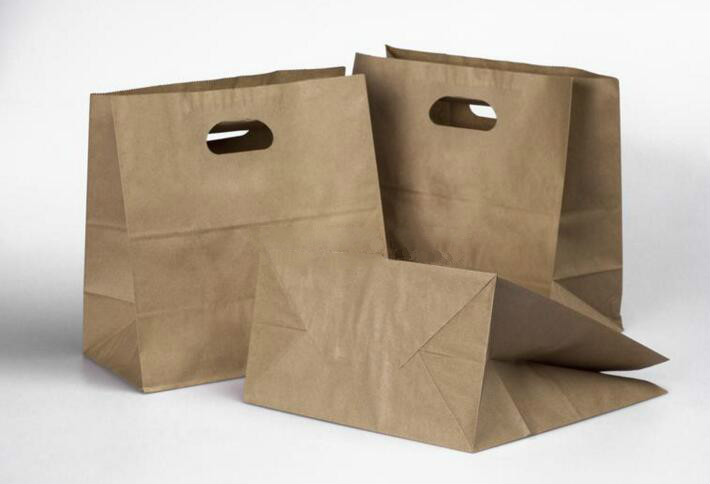

Puncher Handle.jpg

Roll Fed series square bottom paper bag machines are built to make shopping bags or food bags with paper rolls, paper can be pre-printed. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming automatically. It is an ideal equipment for making paper bags for shopping, loading foods, sugar, flour and so on. Extra option of 1. Inline printing unit. 2. Patch handles 3. Window Bags devices are also available.

Technical parameters:

Machine Model	HD-330	HD430-1	HD-550
Paper Roll Width	410-990mm	510-1190mm	570-1350mm
Paper thickness	60-150 gsm	70-150gsm	80-150 gsm
Paper Bag Width	100-320 mm	160-430 mm	190-550 mm
Paper Tube Length	270-600 mm	270-600 mm	330-750 mm

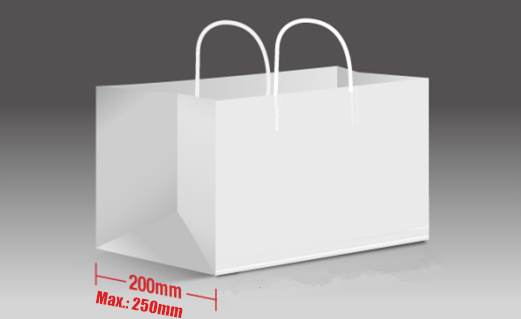

Bag Bottom Width	60-150 mm	80-170 mm	80-250 mm
Speed	80-150Bags/min.	80-130Bags/min.	70-120Bags/min.
Max. Roll material diameter	￠1200 mm	￠1200 mm	￠1200 mm
Material Core Diameter	￠76mm(3″)	￠76mm(3″)	￠76mm(3″)
Total Power	16KW	16KW	20KW
Machine Weight	9000KG	10000KG	14000KG
Machine Dimension (LWH)	12500x2200x2000mm	12.5 x 2.3 x 2m	13500x2500x2500 mm

Video:

HD-550 Model:

HD-330/HD430-1 Model:
