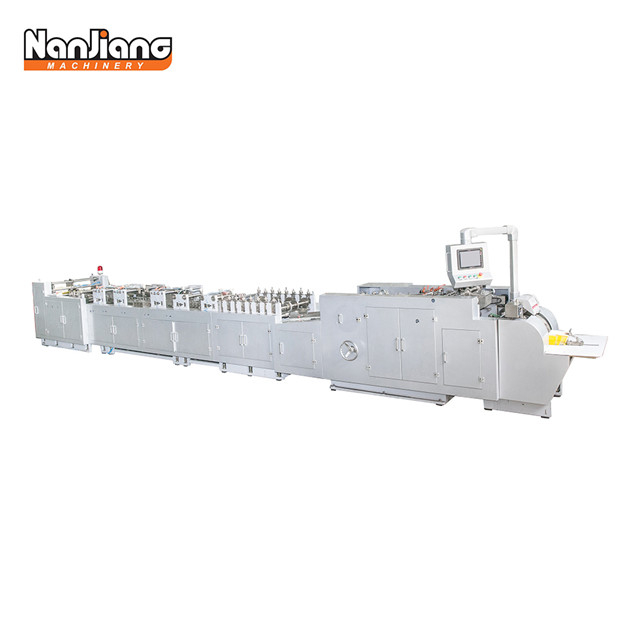

HD-180/430 Sheet Fed Square Bottom Paper Bag Making Machine

Having absorbed the new technology of domestic and abroad, we successfully developed a new kind of paper bag making machine. The materials should be printed sheet paper or non printed sheet paper as per end-user's preference. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom pasting and bag formation at a stroke. It is an ideal equipment for square bottom paper bags packing food grocery, Gift,etc without any manual process.
Availability:

HD-180


 Sample of HD-430.jpg


Having absorbed the new technology of domestic and abroad, we successfully developed a new kind of paper bag making machine. The materials should be printed sheet paper or non printed sheet paper as per end-user's preference. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom pasting and bag formation at a stroke. It is an ideal equipment for small paper bags packing food grocery, Gift,etc without any manual process.


Technical parameter:


Machine Model

HD-180

HD-430

Min. Paper size

320x170mm

545x300mm

Max. Paper size

600x370mm

1185x600mm

Paper Thickness

70-140gsm

100-200gsm

(210-250gsm)

Paper Bag Width

90-180mm

180-450mm

Bag Tube Length

170-370 mm

300-600 mm

Bag Bottom Width

50-110mm

80-170mm

Speed

50-90Bags/min.

50-75Bags/min.

Total Power

12KW

15kw

Machine Weight

7000KG

10000KG

Machine Dimension

(L*W*H)

9000 x 1600 x 1500 mm

12000 x 1900 x 2000mm
