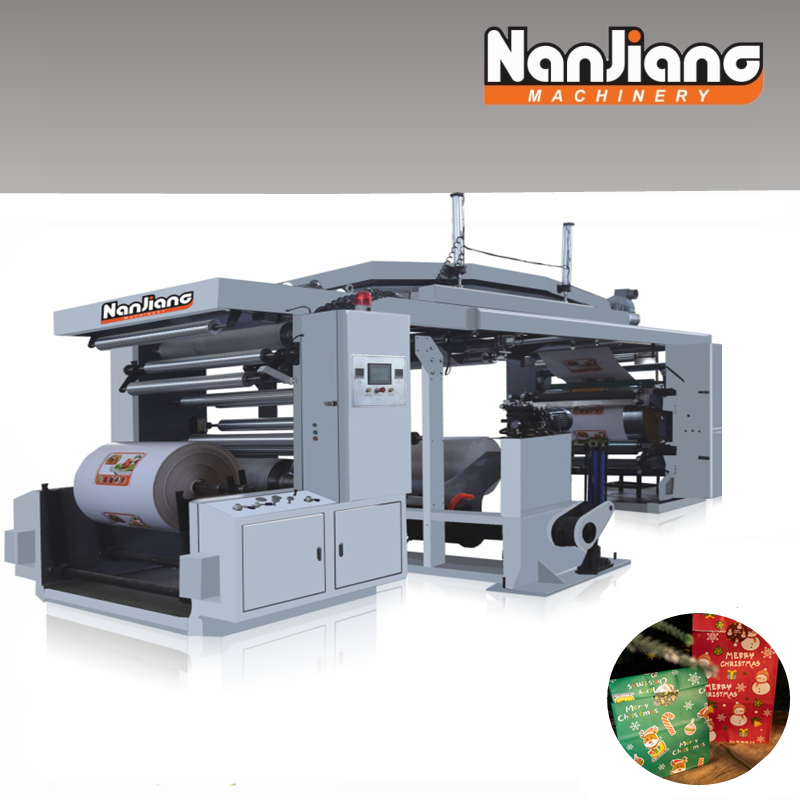

1. Machine features:
(1) Method: Central impression for better color registration. With the central impression configuration,
the printed material is supported by the cylinder, and greatly improving color registration, especially
with extensible materials.
(2) Structure: Wherever possible, parts are communized for availability and wear-resisting design.
(3) Dryer: Hot wind dryer, automatic temperature controller, and separated heat source.
(4) Doctor blade: open type assembly for high-speed printing.
(5) Transmission: Hard gear surface, high precision Decelerate Motor, and encoder buttons are placed
on both control chassis and body for operations convenience.
(6) Rewind: Micro Decelerate Motor, drive Magnetic Powder and Clutch, with PLC control tension
stability.
(7) Gearing of Printing cylinder: repeat length is 5mm
(8) 1 set of printing cylinder on the machine:40cm
Technical Parameters：
Machine Model | WX-4 | WX-6 |
Machine Color | 4 color | 6 color |
Max. Material Width (Customizable) | 1200/1300mm | 1200/1300mm |
Max. Printing Width: 1200mm(Customizable) | 1150/1250 | 1150/1250 |
Printing Material Paper | 50-250 gsm | 50-250 gsm |
Max. Unwind/rewind Diameter | ￠1200 mm | ￠1200 mm |
Max. Machine Speed | 120 m/min | 120 m/min |
Printing Speed | 0-120 m/min | 0-120 m/min |
Printing Length | 300-600 mm | 300-600 mm |
Color Register Precision | Manual Regulation Crosswise: ±10mm Lengthwise: ±7.5mm | Manual Regulation Crosswise: ±10mm Lengthwise: ±7.5mm |
Central Drum Roll Diameter | Ф800mm | Ф800mm |
Ceramic Anilox Roller | 250-800 LPI | 250-800 LPI |
Type of Dryer | Electrical Heating | Electrical Heating |
Total Power | 35KW | 45KW |
Printing way | Single Side | Single Side |
Machine Dimensions(L×W×H) | 7800x2600x3000mm | 7800x2600x3000mm |
|
