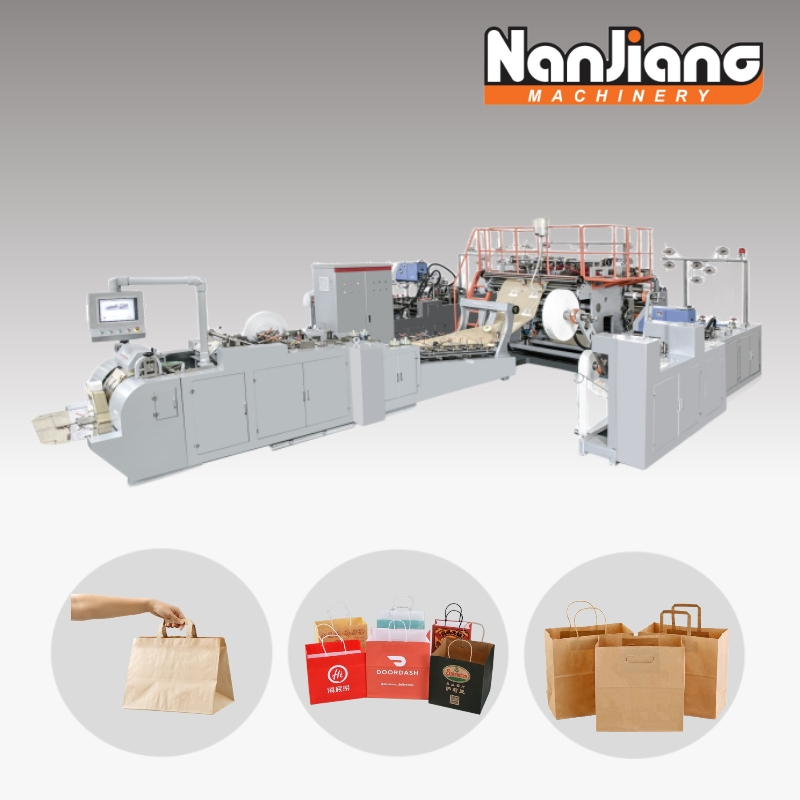

WFD-550 Fully Automatic Roll Fed Paper Bags With Twisted & Flat Handle Machine

With this machine, you can easily create paper bags with twisted handle, flat handle, or even D-punch handle. It offers versatility in terms of handle options, allowing you to cater to different customer preferences.
The equipment adopts European Brand PLC system and servo control system, automatic Web-guide & Paper Tension control, automatic communication by remote system, and automatic synchronous control in this production line.
In conclusion, our WFD-series with twisted and flat handle machine is a versatile and efficient solution for your paper bag manufacturing needs. With its ability to produce bags with different handle options and variable sizes, this machine offers flexibility to meet your customers' preferences. Its fully automatic operation ensures fast and high-quality production. Invest in this machine and take your paper bag production to the next level of professionalism.
Availability:

Technical Parameters:



Machine Model

WFD-550 T&F

Paper Roll Width

630-1350mm

Paper Bag Width

220-550 mm

(if without handle)

(190-450 mm)

Paper Tube Length

330-620mm

(if without handle)

(330-750 mm)

Bag Bottom Width

80-250 mm

Paper Thickness

100-150gsm

(if without handle)

(80-150 gsm)

Max. Roll material diameter

¢1200 mm

Material Core Diameter

¢76mm(3″)

Length of twisted rope (customizable)

155-175 mm

(Diameter of Twisted Rope)

4-6 mm

Size of Flat Belt

10-15 mm

Handle Patch Length

190 mm

Handle Patch Width

40-50 mm

Handle patch Roll Diameter

¢1000 mm

Paper Patch Roll Width

80-100 mm

Paper GSM for Handle patch

110-250 gsm

Speed

70-130 Bags/min.

Total Power

40KW

Machine Weight

24000KG

Machine Dimension (L*W*H)

16500 x 8000 x 3000 mm

Type of glue

Cold & Hot melt Glue
