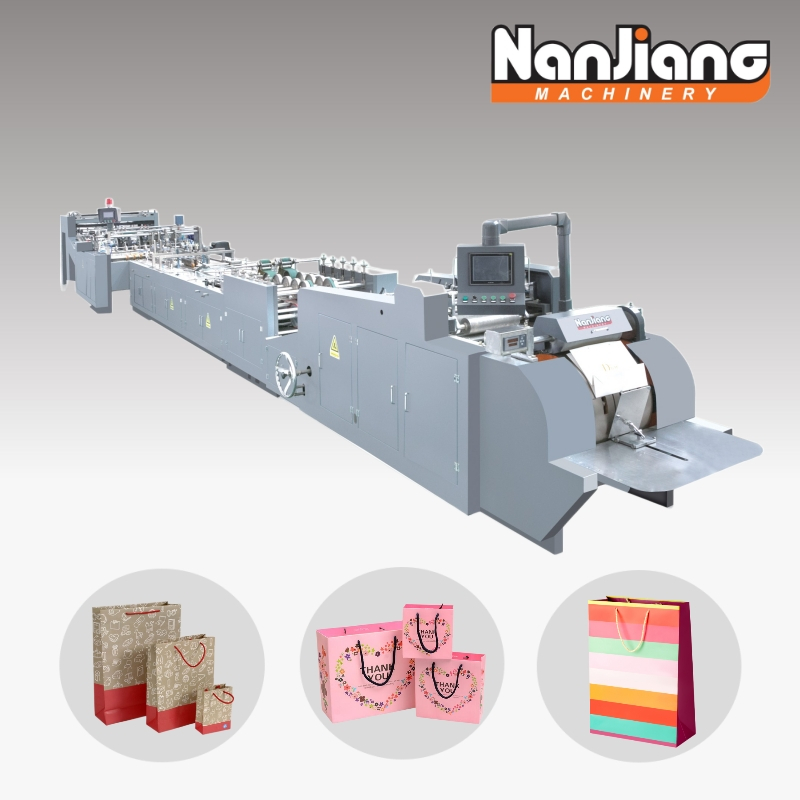

HD-430A Sheet Feeding Paper Carry Bag Machine

HD-430A Sheet fed Paper Bag machine is a fully automatic machine for the production of square bottom paper bags with folded top. The material could be Sheet paper or printed sheet paper/ Laminated Sheets only. It can produce variable sizes paper bags. The machine automatic paper fed from sheets, Automatic Die-cutting(creasing lines for folding), Bag tube forming, Bag bottom forming , bottom cardboard insertion & gluing, Bag bottom folding & gluing, Bag forming and final bag output, All steps are completed in-line.
Availability:

Product Use:

Paper Bags to be used for packing items / Paper shopping bags used for carrying the goods after folded top and loop handle.


Raw Materials :

Any type of kraft (printed) paper(brown or white) in sheet form upto 300 gsm(according to types of paper). Machine automatic creasing , glue, and folding bags.


Technical Parameters:


Machine Model

HD-430A

Min. Paper size

545x350 mm

Max. Paper size

1225x600 mm

Paper Thickness

1. Kraft Paper 120-200 g/㎡

2. Coated Paper + PP film 157-250 g/㎡

3. Ivory Board Paper PP film 180-250 g/㎡

4. Cardboard Paper PP film 150-300 g/㎡

Paper Bag Width

180-430 mm

Bag Tube Length

350-600 mm

Bag Bottom Width

80-170 mm

Bag Top fold Depth30-60 mm

Speed

40-70 Bags/min.

Total Power

20 KW

Machine Weight

10000 KG

Machine Dimension (L*W*H)

14500 x 2000 x 2100 mm

Type of Glue

(Cold & Hotmelt Glue)
