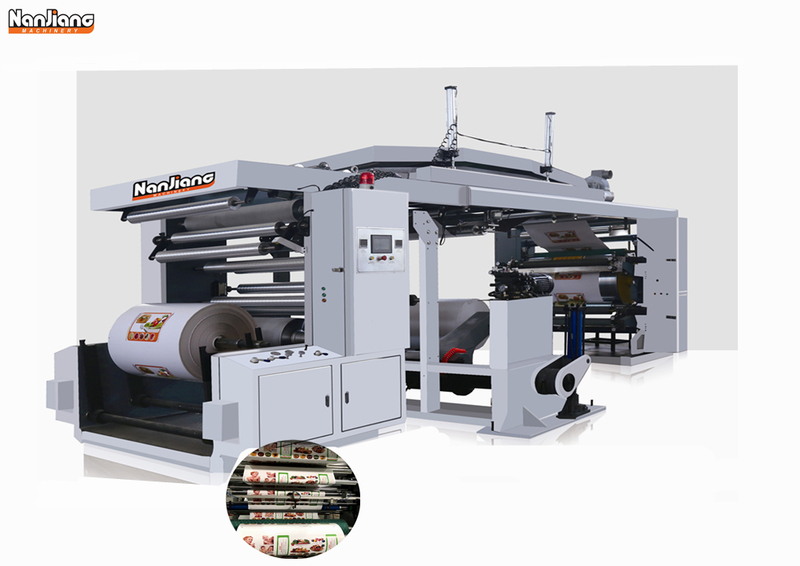

WX-4/6 Four / Six Color CI Flexo Printing Machine

This is Four/  Six Color CI Fleox Printing Machine with most advanced technology mainly for pre-printing on paper bags.  With a better printing effect and low production cost, the press shall substitute the traditional production method for paper raw material. Integrating with the auto control system, Central impression with Ceramic anilox Roller for better color registration. The machine come with the central impression configuration, the printed material is supported by the cylinder, and greatly improving color registration, especially with extensible materials of any type of white or brown paper material.


This is Four/  Six Color CI Fleox Printing Machine with most advanced technology mainly for pre-printing on paper bags.  With a better printing effect and low production cost, the press shall substitute the traditional production method for paper raw material. Integrating with the auto control system, Central impression with Ceramic anilox Roller for better color registration. The machine come with the central impression configuration, the printed material is supported by the cylinder, and greatly improving color registration, especially with extensible materials of any type of white or brown paper material.



Features:

● Central drum with constant temperature control system

● Close chamber doctor blade, reliable and easy for change

● Water varnish / UV varnish unit

● Easy operation pre-register system

● Pressure control and pre-adjustment system

● Adjustable drying system.

● Auo Tension Control System.


Technical parameter:


Model

WX-4

WX-6

Max. material width

1200

1200

Max. printing width

1150

1150

Printing material

50-250gsm

50-250gsm

Max. Unwind/rewind diameter

ф1200mm

ф1200mm

Max machine speed:

120m/min

120m/min

Print speed

0-120 m/min

0-120 m/min

Printing length(Repeat)

300-600mm

300-600mm

Plate Matching Mode

Manual regulation, transverse: ±10mm longitudinal: ±7.5mm

Printing Roller diameter

ф800mm

ф800mm

Ceramic Lines

LPI scope: 250-800LPI

LPI scope: 250-800LPI

Drying Power

Electric heating

Electric heating

Printing mode

 Full width 4 one side

Full width 6 color on one side

Total Power

35KW

45KW

Machine dimension(L x W x H)

7800x2600x3000mm

7800x2600x3000mm



Video:
